Μέγεθος
3.8m x 1.2m x 2.1m
![](https://www.fotagonled.gr/cms/wp-content/uploads/Picture8-1.png)
Ωφέλιμο Φορτίο
1250kg
![](https://www.fotagonled.gr/cms/wp-content/uploads/Picture4-1.png)
Χρόνος Φόρτισης:
8 ώρες
![](https://www.fotagonled.gr/cms/wp-content/uploads/Picture5-1.png)
Εγγύηση
2 Χρόνια
![](https://www.fotagonled.gr/cms/wp-content/uploads/Picture6.png)
Μπαταρία
Μολύβδου
![](https://www.fotagonled.gr/cms/wp-content/uploads/Picture3.png)
Technical Specifications
Aluminum tilting cab
• Wide panoramic glasses
• Fully accessible
• Perfectly soundproof
• Intuitive and programmable console with
standard self-diagnosis
• Two-seaters cabin
• “Always home” system to ensure that you
return even with low battery
• Speed control system
• Compact and handy
• 2 and 4 steering wheels
• Double braking circuit on the four wheels
• Double Suspension System
• 2 cubic meter stainless steel waste hopper
• High dump at 1.600 mm
• Easy to clean and inspect
• 400 liters capacity water tank
• High performance suction fan
• Indirect suction with filtration system
• Increased suction push button
• Electric brushless AC motors capable
of energy recovery of about 10%
• Manual and “turn and follow”
automatic sweeping system
• LED headlights
• Stainless steel nozzle resting
on pivoting wheels with pedal
controlled front flap
• Safe 48 V electrical system
• LCD colour monitor + rear
camera
• “one touch” system
• Centralised greasing system
(without pump)
• 3500 kg and 4300 kg homologated
![](https://www.fotagonled.gr/cms/wp-content/uploads/eco-2-300x129.jpg)
Length: maximum mm 3,880 without the third brush
Width: maximum mm 1,200
Height: maximum mm 2,100
Legally allowed capacity:not below kg 1,900 (lithium version)
not below kg 1,250 (lead acid version standard maintenance)
not below kg 1,220 (lead acid version reduced maintenance)
not below kg 1,320 (AGM version)
ELECTRIC 48 Volt (extremely low Voltage) suction street sweeper approx. 2 m3 hopper volume, ordinary driving licence required (if applies cat. B), 4 steering WHEELS.
lithium batteries 48V 1000 Ah (or)
lead acid batteries (standard maintenance) 48V 1000 Ah (or)
lead acid batteries (reduced maintenance) 48V 1104 Ah (or)
AGM batteries 48 V 875 Ah
Machine traction, steering, suction and sweeping units powered exclusively by electricity, not hydraulically.
Operating autonomy 8/10 hours
Collection system: exclusively through suction fan powered by N.1 electric motor
Chassis: specifically built in high-resistance material Domex 700 steel, two axles, front steering axle, rear steering axle during operation, rear axle fitted with electric traction motors;
Suspensions: independent on the four wheels, consisting of hydraulic shock absorbers combined with reinforced springs.
Transmission: traction should be exclusively done by 2 asynchronous alternate current electric motors of 4,5 Kw each, total power 9 kW in continuous service, with energy recovery system during deceleration and braking.
Steering: front axle steering during transfer, four-wheel steering during operation. Fully electric “Steer by wire” steering system, with steering handled by dedicated electronic control.
Brakes:
– on the four wheels with pedal control, double braking circuit;
- drum brakes on the front wheels
- oil bath disk brakes on the rear wheels
– electro-mechanical parking brake operating on the electric motors of the rear wheels with pushbutton control.
– single circuit emergency brake
Electronic Hill Start Assist Control system that automatically keeps the brake on the machine when it stops on a slope during travel, for maximum ease and safety during hill starts.
Sweeping system: consisting of two counter-rotating brushes with vertical shaft positioned in front of the front axle to sweep the waste towards the suction nozzle between them.
Both brushes are powered by 2 electric motors, not by hydraulic motors.
The material must be fed into the waste hopper, which is kept in a vacuum by the centrifugal suction fan, which must never come into contact with the waste. The rotation speed of the brushes and fan must be adjustable by using controls in the cab.
Min diam. of side brushes: mm 850, each powered by electric motor.
Brushes side movement is controlled by joystick in the cab.
Suction nozzle: in material resistant to corrosion and abrasion, in AISI 304 stainless steel, with castor wheels and automatic opening system for the collection of bulky waste; width not below mm 600. Automatic lifting system for the nozzle by operating transfer mode and reverse gear.
Suction Hose: made in stainless steel and natural rubber, of maximum diameter mm 160.

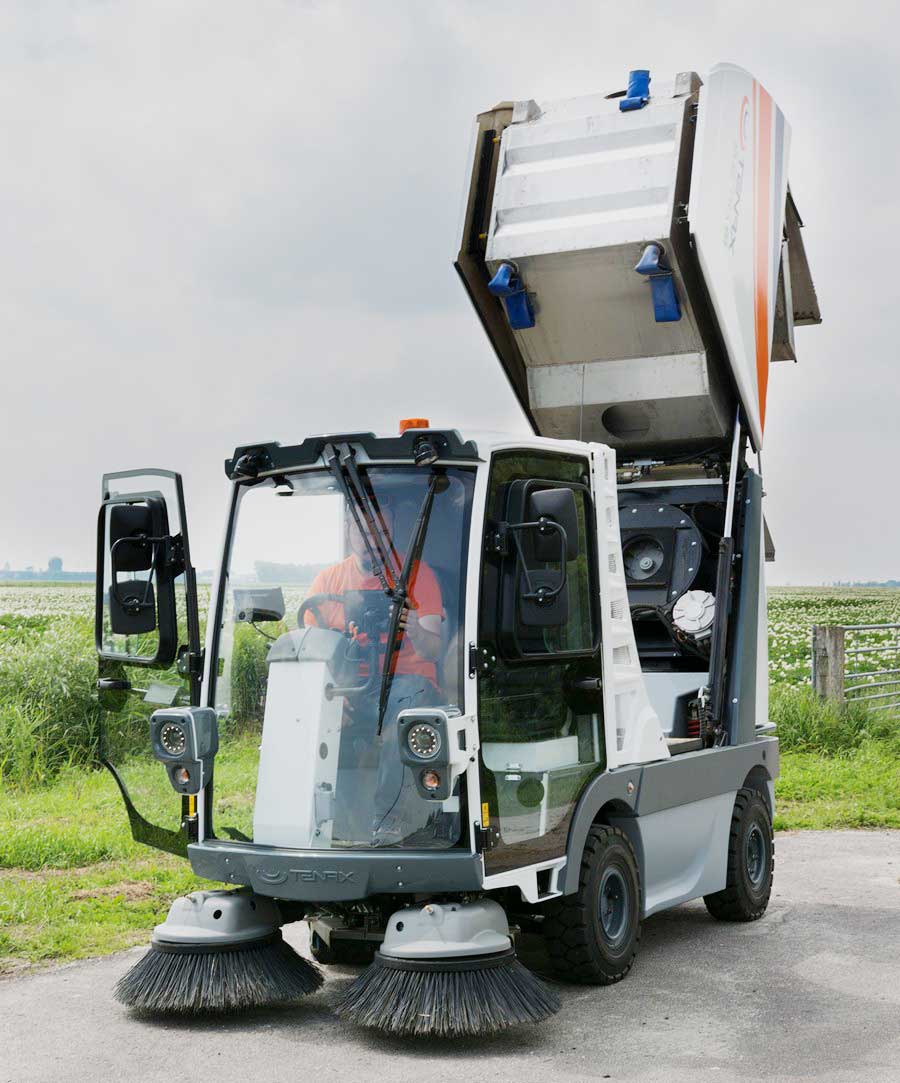

Waste hopper: made in AISI 304 stainless steel. Minimum capacity 1 m3. Tipping system with high dump. Minimum tipping system height mm 1,600.
Dust suppression system: water-based, consisting of a clean water tank in material resistant to corrosion with a capacity of at least 350 litres without water recycling, a pump and misting nozzles located near the brushes, the suction nozzle and inside the suction hose; Double filtering system consisting in N.1 stainless steel filter panel in the hopper and N.2 side tunnels for the deep filtering of the dust.

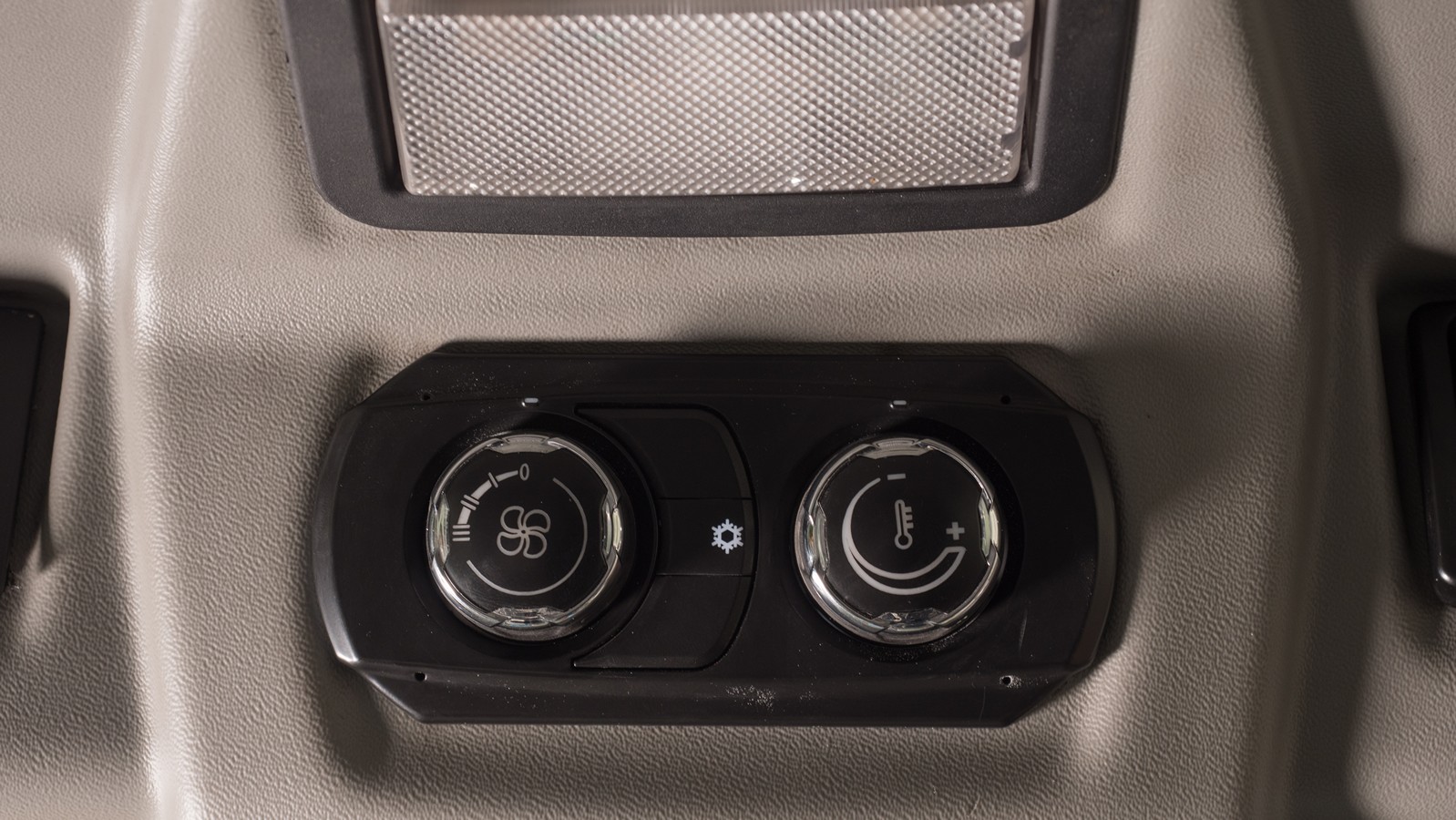

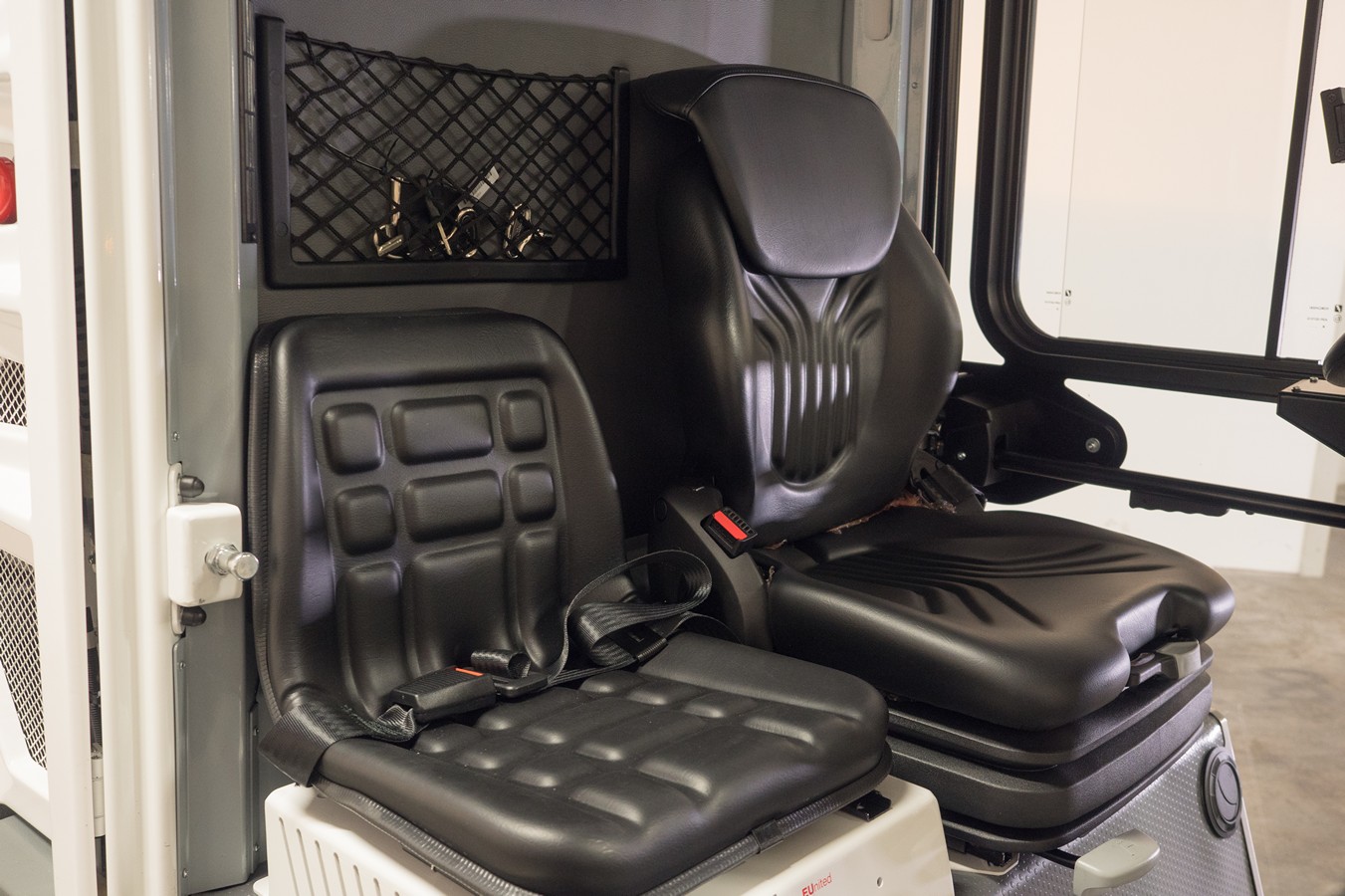

Driver’s Cab: in aluminium, tiltable, must have 2 seats: driver and passenger, with adjustable anatomical seat, complete with seatbelt, side doors with opening windows, electric air conditioning and heating system with PM10 filtration system.
The cab must have a panoramic windscreen with wipers and electric screen wash system; there must be a glass inspection hatch on the floor of the cab that can be opened for inspecting the sweeping unit during operation.
Battery: lithium LiFeP04 (lithium Iron Phosphate technology), with total capacity of at least 1000 Ah 48 Volt (or) Lead Acid (standard maintenance) 1000 Ah 48 Volt (or) Lead Acid (reduced maintenance) 1104 Ah 48 Volt (or) AGM batteries 875 Ah 48 Volt.
Battery charger: External high frequency electronic battery charger must be supplied. Not on board.
LCD monitor + rear view camera: the sweeper should be equipped with a LCD monitor installed in the cab and a colour camera for rear view.
Greasing system: the sweeper should be equipped with a hand operated centralized greasing system.
Radial tyres: the sweeper should be equipped with radial tyres.
Speed during brushing: between 0 and 10 Km/h;
Transfer speed: from 0 to 24 Km/h;
Minimum sweeping width: mm 1,900 (mm 1,700 with reduced brushes mm 750 diameter)
The sweeper can be delivered with the following optionals:
THREE PHASE HIGH FREQUENCY BATTERY CHARGER FOR LITHIUM BATTERY (CHARGING TIME 7-8 HOURS)
FAST-CHARGE THREE PHASE HIGH FREQUENCY BATTERY CHARGER FOR LITHIUM BATTERY (CHARGING TIME 4 HOURS)
BATTERY CHARGER FOR LEAD ACID BATTERY WITH DATALOGGER (CHARGING TIME 7-8 HOURS)
CAMERA ON SUCTION NOZZLE
HIGH PRESSURE WASHING UNIT WITH 11 L 100 BAR PUMP
